7.4 Example — Doublet Lens Tilt

PDF section 7.4. Source script: KrakenOS/Examples/Examp_Doublet_Lens_Tilt.py.

Shows how the AxisMove, TiltX and DespY attributes affect the optical axis. The same set of doublet surfaces is reused in the surface list — when a surface is modified, every reuse of it follows the same transformation, so the design built from a repeated pattern is fully off-axis after the tilt is applied.

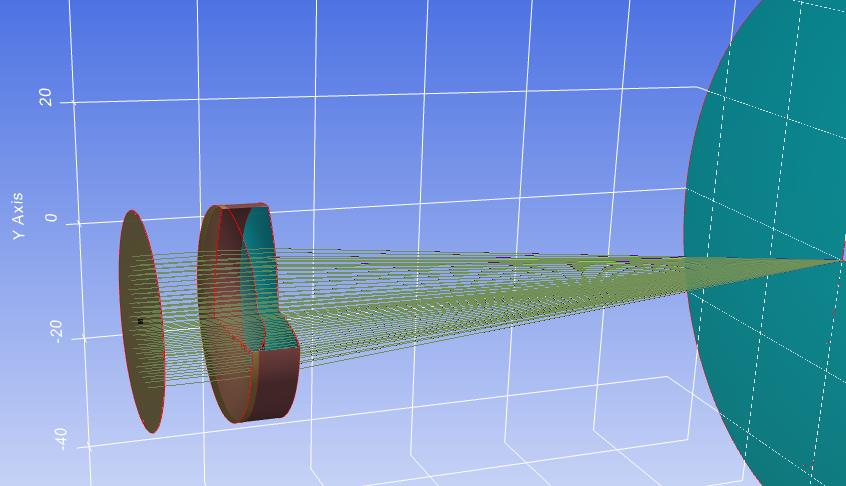

Figure 11. 3D visualization of an off-axis system built by repeating the doublet surfaces; modifying a surface affects every part of the design that uses it.

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""Examp Doublet Lens Tilt"""

import numpy as np
from importlib import metadata
""" Looking for if KrakenOS is installed, if not, it assumes that
an folder downloaded from github is run"""

required = {'KrakenOS'}
installed = {dist.metadata["Name"] for dist in metadata.distributions() if dist.metadata.get("Name")}
missing = {pkg for pkg in required if pkg not in installed}

if missing:
    print("Not installed")
    import sys
    sys.path.append("../..")


import KrakenOS as Kos

# ______________________________________#

P_Obj = Kos.surf()
P_Obj.Rc = 0.0
P_Obj.Thickness = 10
P_Obj.Glass = "AIR"
P_Obj.Diameter = 30.0

# ______________________________________#

L1a = Kos.surf()
L1a.Rc = 9.284706570002484E+001
L1a.Thickness = 6.0
L1a.Glass = "BK7"
L1a.Diameter = 30.0
L1a.AxisMove = 1
L1a.TiltX = 1
L1a.DespY = 10.

# ______________________________________#

L1b = Kos.surf()
L1b.Rc = (-3.071608670000159E+001)
L1b.Thickness = 3.0
L1b.Glass = "F2"
L1b.Diameter = 30

# ______________________________________#

L1c = Kos.surf()
L1c.Rc = (-7.819730726078505E+001)
L1c.Thickness = 9.737604742910693E+001
L1c.Glass = "AIR"
L1c.Diameter = 30

# ______________________________________#

P_Ima = Kos.surf()
P_Ima.Rc = 0.0
P_Ima.Thickness = 0.0
P_Ima.Glass = "AIR"
P_Ima.Diameter = 100.0
P_Ima.Name = "Plano imagen"

# ______________________________________#

A = [P_Obj, L1a, L1b, L1c, P_Obj, L1a, L1b, L1c, P_Ima]
configuracion_1 = Kos.Setup()

# ______________________________________#

Doblete = Kos.system(A, configuracion_1)
Rayos = Kos.raykeeper(Doblete)

# ______________________________________#

tam = 5
rad = 10.0
tsis = len(A) - 1
for i in range(-tam, tam + 1):
    for j in range(-tam, tam + 1):
        x_0 = (i / tam) * rad
        y_0 = (j / tam) * rad
        r = np.sqrt((x_0 * x_0) + (y_0 * y_0))
        if r < rad:
            tet = 0.0
            pSource_0 = [x_0, y_0, 0.0]
            dCos = [0.0, np.sin(np.deg2rad(tet)), np.cos(np.deg2rad(tet))]
            W = 0.4
            Doblete.Trace(pSource_0, dCos, W)
            Rayos.push()
            W = 0.5
            Doblete.Trace(pSource_0, dCos, W)
            Rayos.push()
            W = 0.6
            Doblete.Trace(pSource_0, dCos, W)
            Rayos.push()

# ______________________________________#

Kos.display3d(Doblete, Rayos, 2)
Kos.display2d(Doblete, Rayos, 0)
