7.7 Example — Doublet Lens NonSec

PDF section 7.7. Source script: KrakenOS/Examples/Examp_Doublet_Lens_NonSec.py.

Uses NsTrace (non-sequential tracing) instead of Trace. With the image plane set to "MIRROR" and tilted, some rays reflect back through the system; their amplitudes depend on the Fresnel coefficients at each interface, which in turn depend on wavelength, material and angle of incidence at the normal.

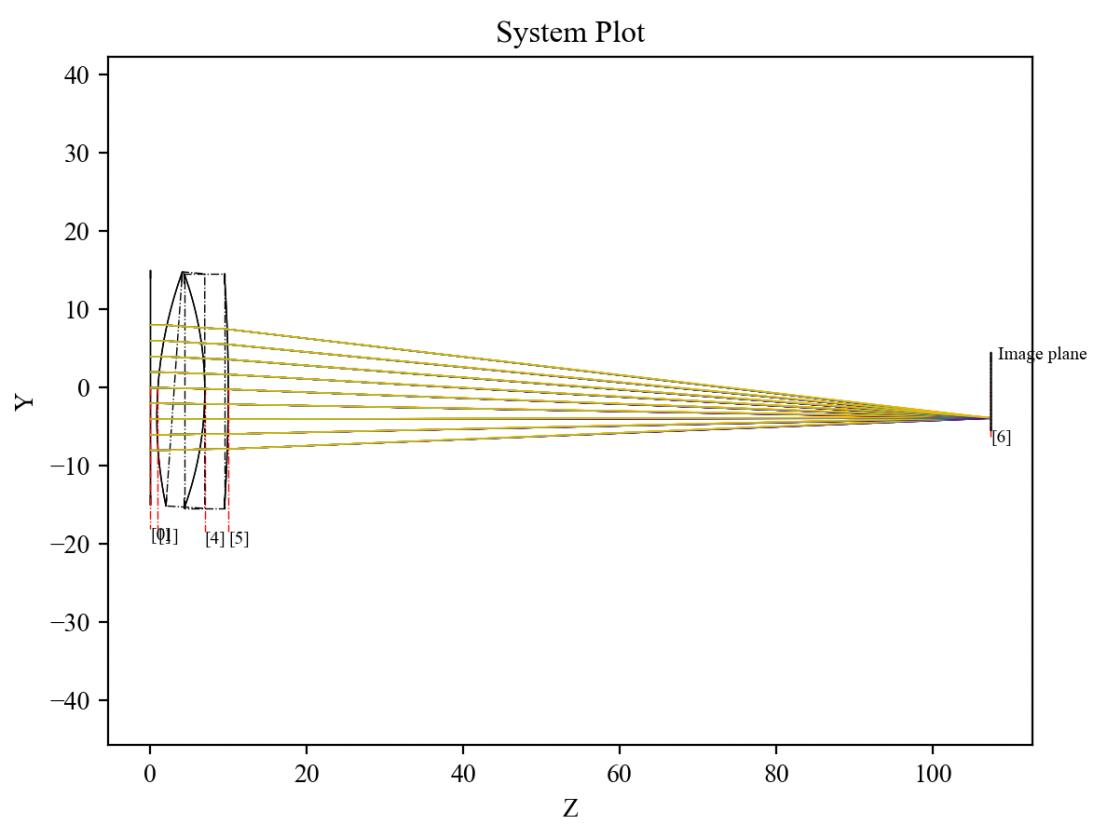

Figure 14a. 2D non-sequential trace.

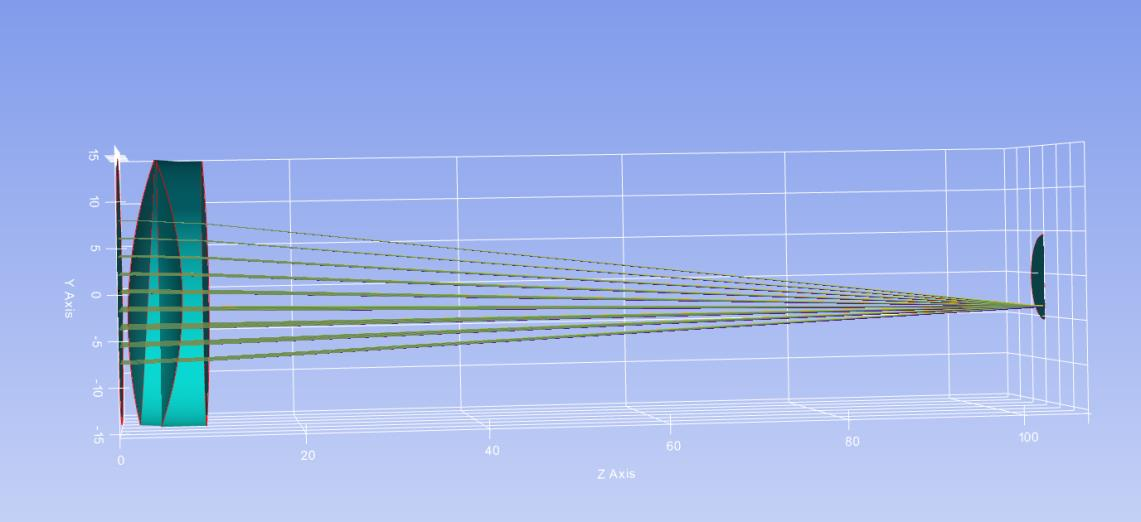

Figure 14b. 3D non-sequential trace — rays are reflected back according to the Fresnel coefficients.

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""Examp Doublet Lens NonSec"""

import numpy as np
from importlib import metadata
""" Looking for if KrakenOS is installed, if not, it assumes that
an folder downloaded from github is run"""

required = {'KrakenOS'}
installed = {dist.metadata["Name"] for dist in metadata.distributions() if dist.metadata.get("Name")}
missing = {pkg for pkg in required if pkg not in installed}

if missing:
    print("Not installed")
    import sys
    sys.path.append("../..")


import KrakenOS as Kos

# _________________________________________#

P_Obj = Kos.surf()
P_Obj.Rc = 0.0
P_Obj.Thickness = 1
P_Obj.Glass = "AIR"
P_Obj.Diameter = 30.0

# _________________________________________#

P_Obj2 = Kos.surf()
P_Obj2.Rc = 0.0
P_Obj2.Thickness = 10
P_Obj2.Glass = "AIR"
P_Obj2.Diameter = 100.0

# _________________________________________#

L1a = Kos.surf()
L1a.Rc = 9.284706570002484E+001
L1a.Thickness = 6.0
L1a.Glass = "BK7"
L1a.Diameter = 30.0


# _________________________________________#

L1b = Kos.surf()
L1b.Rc = -3.071608670000159E+001
L1b.Thickness = 3.0
L1b.Glass = "F2"
L1b.Diameter = 30

# _________________________________________#

L1c = Kos.surf()
L1c.Rc = -7.819730726078505E+001
L1c.Thickness = 9.737604742910693E+001
L1c.Glass = "AIR"
L1c.Diameter = 30

# _________________________________________#

P_Ima = Kos.surf()
P_Ima.Rc = 0.0
P_Ima.Thickness = 0.0
P_Ima.Glass = "MIRROR"
P_Ima.Diameter = 30.0
P_Ima.DespZ = 10
P_Ima.TiltX = 6.

# _________________________________________#

A = [P_Obj, P_Obj2, L1a, L1b, L1c, P_Ima]
configuracion_1 = Kos.Setup()

# _________________________________________#

Doblete = Kos.system(A, configuracion_1)
Rayos = Kos.raykeeper(Doblete)

# _________________________________________#


Doblete.energy_probability=1 # 0 for transmission only
Doblete.NsLimit=50


tam = 10
rad = 14.0
tsis = len(A) - 1
for nsc in range(0, 30):
    for j in range(-tam, tam + 1):
        x_0 = (0 / tam) * rad
        y_0 = (j / tam) * rad
        r = np.sqrt((x_0 * x_0) + (y_0 * y_0))
        if r < rad:
            tet = 0.0
            pSource_0 = [x_0, y_0, 0.0]
            dCos = [0.0, np.sin(np.deg2rad(tet)), np.cos(np.deg2rad(tet))]
            W = 0.4
            Doblete.NsTrace(pSource_0, dCos, W)
            Rayos.push()

# _________________________________________#

Kos.display3d(Doblete, Rayos, 2)
