7.12 Example — Doublet Lens Pupil + Seidel

PDF section 7.12. Source script: KrakenOS/Examples/Examp_Doublet_Lens_Pupil_Seidel.py.

Computes the Seidel-aberration sums via Kos.Seidel for the doublet, sweeping field angle, then re-uses PupilCalc to trace a fan at the same field for visual inspection.

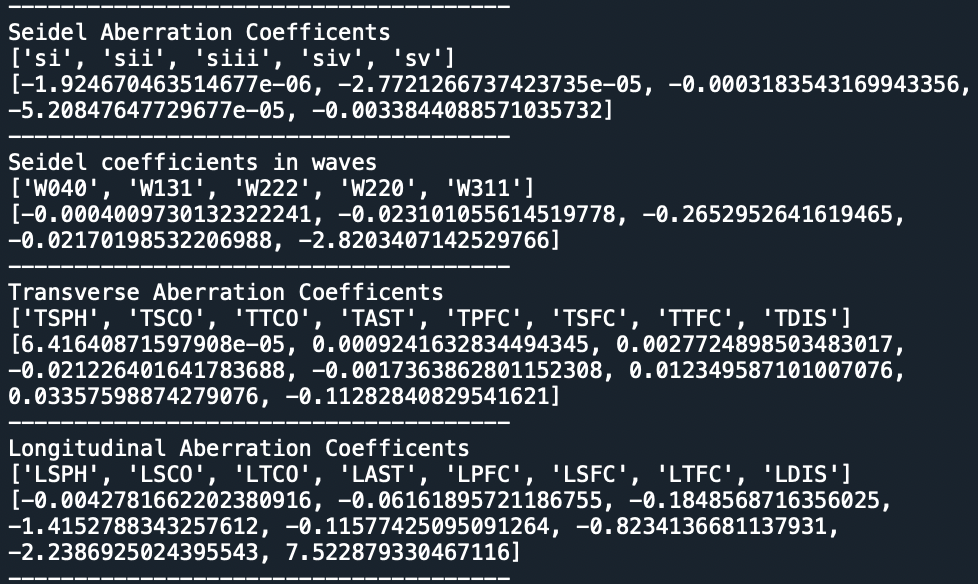

Figure 19a. Seidel-aberration sums printed by the example.

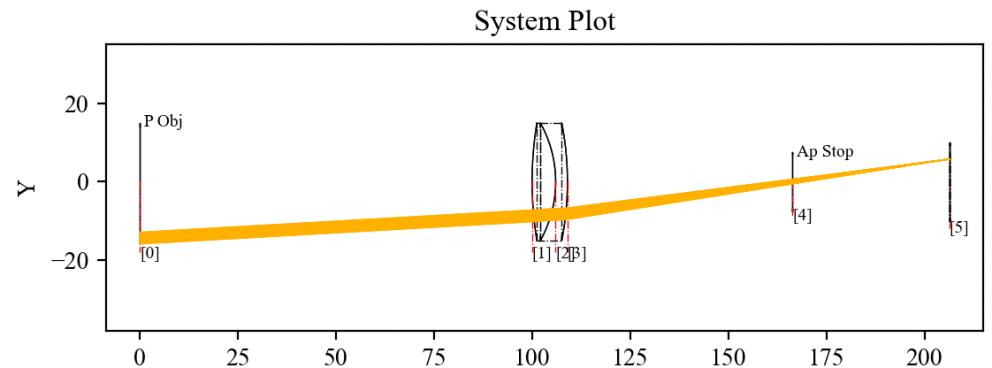

Figure 19b. Ray fan delimited by the pupil image, for the same field used in the Seidel sums.

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""Examp Doublet Lens Pupil Seidel"""

from importlib import metadata
""" Looking for if KrakenOS is installed, if not, it assumes that
an folder downloaded from github is run"""

required = {'KrakenOS'}
installed = {dist.metadata["Name"] for dist in metadata.distributions() if dist.metadata.get("Name")}
missing = {pkg for pkg in required if pkg not in installed}

if missing:
    print("Not installed")
    import sys
    sys.path.append("../..")


import KrakenOS as Kos
import numpy as np

# _________________________________________#

P_Obj = Kos.surf()
P_Obj.Rc = 0.0
P_Obj.Thickness = 100
P_Obj.Glass = "AIR"
P_Obj.Diameter = 30.0
P_Obj.Name = "P Obj"

# _________________________________________#

L1a = Kos.surf()
L1a.Rc = 9.284706570002484E+001
L1a.Thickness = 6.0
L1a.Glass = "N-BK7"
L1a.Diameter = 30.0
L1a.Axicon = 0

# _________________________________________#

L1b = Kos.surf()
L1b.Rc = -3.071608670000159E+001
L1b.Thickness = 3.0
L1b.Glass = "F2"
L1b.Diameter = 30

# _________________________________________#

L1c = Kos.surf()
L1c.Rc = -7.819730726078505E+001
L1c.Thickness = 9.737604742910693E+001 - 40
L1c.Glass = "AIR"
L1c.Diameter = 30

# _________________________________________#

pupila = Kos.surf()
pupila.Rc = 0
pupila.Thickness = 40.
pupila.Glass = "AIR"
pupila.Diameter = 15.0
pupila.Name = "Ap Stop"

# _________________________________________#

P_Ima = Kos.surf()
P_Ima.Rc = 0.0
P_Ima.Thickness = 0.0
P_Ima.Glass = "AIR"
P_Ima.Diameter = 20.0

# _________________________________________#

A = [P_Obj, L1a, L1b, L1c, pupila, P_Ima]
config_1 = Kos.Setup()

# _________________________________________#

Doblete = Kos.system(A, config_1)

# _________________________________________#

W = 0.6
Surf = 4
AperVal = 3
AperType = "EPD"
fieldType = "angle"

Pup = Kos.PupilCalc(Doblete, Surf, W, AperType, AperVal)
Pup.Samp = 25
Pup.Ptype = "fan"
Pup.FieldY = 3.25

# _________________________________________#

AB = Kos.Seidel(Pup)

print("--------------------------------------")
print(AB.SAC_AN)
print(AB.SAC_NM)
print(AB.SAC_TOTAL)
print("--------------------------------------")
print(AB.SCW_AN)
print(AB.SCW_NM)
print(AB.SCW_TOTAL)
print("--------------------------------------")
print(AB.TAC_AN)
print(AB.TAC_NM)
print(AB.TAC_TOTAL)
print("--------------------------------------")
print(AB.LAC_AN)
print(AB.LAC_NM)
print(AB.LAC_TOTAL)
print("--------------------------------------")
print("Chromatic aberration")
print(AB.CL)
print(AB.CT)

print("--------------------------------------")

print("Where the Fraunhofer spectral lines are Wd (587.6 nm), Wf (486.1 nm), and Wc (656.3 nm)")


AB.Wc = 0.6563
AB.Wd = 0.5876
AB.Wf = 0.4861

print("If the wavelength is changed, the aberrations must be recalculated")
AB.calculate()

print("Chromatic aberration")
print(AB.CL)
print(AB.CT)



# print( AB[0][0])
# print(np.sum(AB[1][0]), np.sum(AB[1][1]), np.sum(AB[1][2]), np.sum(AB[1][3]), np.sum(AB[1][4]))

# j=1
# print( AB[0][0+j])
# print(np.sum(AB[1+j][0]), np.sum(AB[1+j][1]), np.sum(AB[1+j][2]), np.sum(AB[1+j][3]), np.sum(AB[1+j][4]))

# j=2
# print( AB[0][0+j])
# print(np.sum(AB[1+j][0]), np.sum(AB[1+j][1]), np.sum(AB[1+j][2]), np.sum(AB[1+j][3]), np.sum(AB[1+j][4]))

# j=3
# print( AB[0][0+j])
# print(np.sum(AB[1+j][0]), np.sum(AB[1+j][1]), np.sum(AB[1+j][2]), np.sum(AB[1+j][3]), np.sum(AB[1+j][4]))

# #_________________________________________#


x, y, z, L, M, N = Pup.Pattern2Field()
Rayos = Kos.raykeeper(Doblete)

# _________________________________________#

for i in range(0, len(x)):
    pSource_0 = [x[i], y[i], z[i]]
    dCos = [L[i], M[i], N[i]]
    Doblete.Trace(pSource_0, dCos, W)
    Rayos.push()

# _________________________________________#

Kos.display2d(Doblete, Rayos, 0)
