7.11 Example — Doublet Lens Commands System

PDF section 7.11. Source script: KrakenOS/Examples/Examp_Doublet_Lens_CommandsSystem.py.

Traces a single ray and then prints essentially every attribute the system class exposes (see Table 2 — system class implementations and attributes): EFFL, the cardinal planes, the per-surface arrays (SURFACE, NAME, GLASS, XYZ, S_XYZ, T_XYZ, OST_XYZ, DISTANCE, OP, TOP, TOP_S, ALPHA, S_LMN, LMN, R_LMN, N0, N1, WAV, G_LMN, ORDER, GRATING, RP/RS/TP/TS, TTBE, TT, BULK_TRANS).

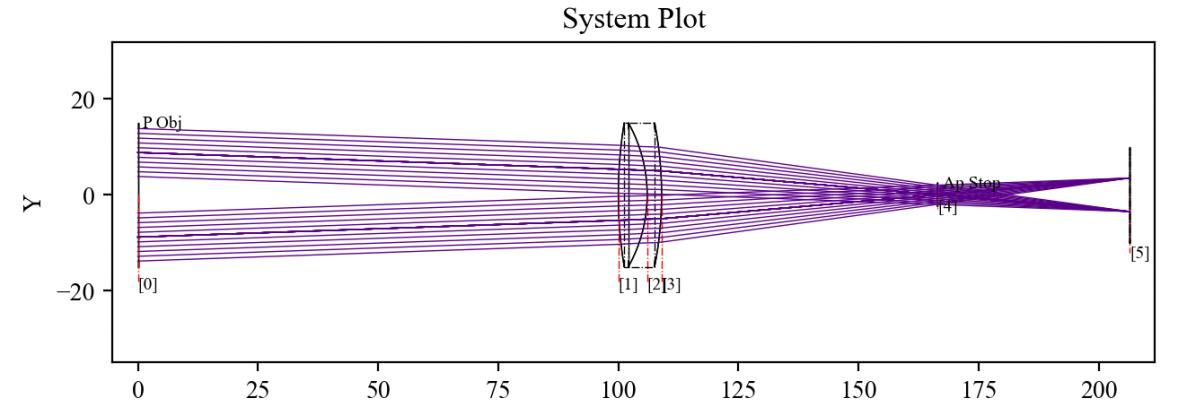

Figure 18. 3D view of the doublet used by the commands example.

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""Examp Doublet Lens Commands System"""

import numpy as np
from importlib import metadata
""" Looking for if KrakenOS is installed, if not, it assumes that
an folder downloaded from github is run"""

required = {'KrakenOS'}
installed = {dist.metadata["Name"] for dist in metadata.distributions() if dist.metadata.get("Name")}
missing = {pkg for pkg in required if pkg not in installed}

if missing:
    print("Not installed")
    import sys
    sys.path.append("../..")


import KrakenOS as Kos

# _________________________________________#

P_Obj = Kos.surf()
P_Obj.Rc = 0.0
P_Obj.Thickness = 0.1
P_Obj.Glass = "AIR"
P_Obj.Diameter = 30.

# _________________________________________#

P_Obj2 = Kos.surf()
P_Obj2.Rc = 0.0
P_Obj2.Thickness = 10
P_Obj2.Glass = "AIR"
P_Obj2.Diameter = 30.0

# _________________________________________#

L1a = Kos.surf()
L1a.Rc = 9.284706570002484E+001
L1a.Thickness = 6.0
L1a.Glass = "BK7"
L1a.Diameter = 30.0
L1a.Axicon = 0

# _________________________________________#

L1b = Kos.surf()
L1b.Rc = -3.071608670000159E+001
L1b.Thickness = 3.0
L1b.Glass = "F2"
L1b.Diameter = 30

# _________________________________________#

L1c = Kos.surf()
L1c.Rc = -7.819730726078505E+001
L1c.Thickness = 9.737604742910693E+001
L1c.Glass = "AIR"
L1c.Diameter = 30

# _________________________________________#

P_Ima = Kos.surf()
P_Ima.Rc = 0.0
P_Ima.Thickness = 0.0
P_Ima.Glass = "AIR"
P_Ima.Diameter = 18.0
P_Ima.Name = "Plano imagen"

# _________________________________________#

A = [P_Obj, P_Obj2, L1a, L1b, L1c, P_Ima]
configuracion_1 = Kos.Setup()

# _________________________________________#

Doblete = Kos.system(A, configuracion_1)
Rayos = Kos.raykeeper(Doblete)

# _________________________________________#

pSource_0 = [0, 14, 0]
tet = 0.1
dCos = [0.0, np.sin(np.deg2rad(tet)), -np.cos(np.deg2rad(tet))]
W = 0.4
Doblete.Trace(pSource_0, dCos, W)
Rayos.push()

# _________________________________________#

Kos.display3d(Doblete, Rayos, 2)

# _________________________________________#

print("Distancia focal efectiva")
print(Doblete.EFFL)
print("Plano principal anterior")
print(Doblete.PPA)
print("Plano principal posterior")
print(Doblete.PPP)
print("Superficies tocadas por el rayo")
print(Doblete.SURFACE)
print("Nombre de la superficie")
print(Doblete.NAME)
print("Vidrio de la superficie")
print(Doblete.GLASS)
print("Coordenadas del rayo en las superficies")
print(Doblete.XYZ)
print("Etc, ver documentaciòn")
print(Doblete.S_XYZ)
print(Doblete.T_XYZ)
print(Doblete.OST_XYZ)
print(Doblete.DISTANCE)
print(Doblete.OP)
print(Doblete.TOP)
print(Doblete.TOP_S)
print(Doblete.ALPHA)
print(Doblete.S_LMN)
print(Doblete.LMN)
print(Doblete.R_LMN)
print(Doblete.N0)
print(Doblete.N1)
print(Doblete.WAV)
print(Doblete.G_LMN)
print(Doblete.ORDER)
print(Doblete.GRATING)
print(Doblete.RP)
print(Doblete.RS)
print(Doblete.TP)
print(Doblete.TS)
print(Doblete.TTBE)
print(Doblete.TT)
print(Doblete.BULK_TRANS)
