7.18 Example — Diffraction Grating in Transmission

PDF section 7.18. Source script: KrakenOS/Examples/Examp_Diffraction_Grating_Transmission.py.

Sets Diff_Ord, Grating_D and Grating_Angle on a planar surface to make it a transmission grating. Tracing a fan of three wavelengths shows the dispersion: each wavelength leaves the grating at a different angle for the same diffraction order.

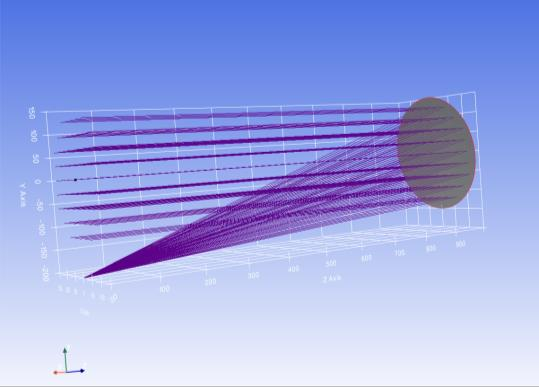

Figure 25a. Transmission grating — multi-wavelength fan.

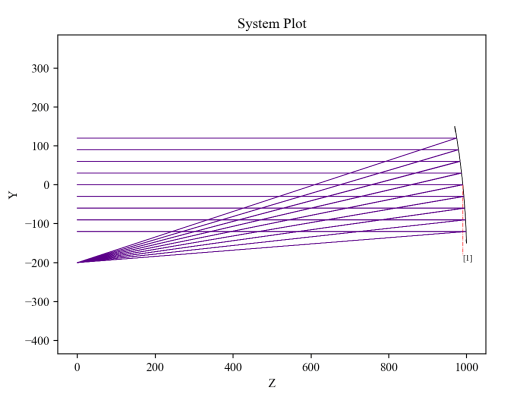

Figure 25b. Alternate view.

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""Examp Diffraction Grating Transmission"""

import numpy as np
from importlib import metadata
""" Looking for if KrakenOS is installed, if not, it assumes that
an folder downloaded from github is run"""

required = {'KrakenOS'}
installed = {dist.metadata["Name"] for dist in metadata.distributions() if dist.metadata.get("Name")}
missing = {pkg for pkg in required if pkg not in installed}

if missing:
    print("Not installed")
    import sys
    sys.path.append("../..")


import KrakenOS as Kos
# _________________________________________#

P_Obj = Kos.surf()
P_Obj.Rc = 0.0
P_Obj.Thickness = 10
P_Obj.Glass = "AIR"
P_Obj.Diameter = 30.0

# _________________________________________#

Dif_Obj_c1 = Kos.surf()
Dif_Obj_c1.Rc = 0.0
Dif_Obj_c1.Thickness = 1
Dif_Obj_c1.Glass = "BK7"
Dif_Obj_c1.Diameter = 30.0
Dif_Obj_c1.Grating_D = 1.0
Dif_Obj_c1.Diff_Ord = 1.
Dif_Obj_c1.Grating_Angle = 45.

# _________________________________________#

Dif_Obj_c2 = Kos.surf()
Dif_Obj_c2.Rc = 0.0
Dif_Obj_c2.Thickness = 10
Dif_Obj_c2.Glass = "AIR"
Dif_Obj_c2.Diameter = 30.0

# _________________________________________#

L1a = Kos.surf()
L1a.Rc = 5.513435044607768E+001
L1a.Thickness = 6.0
L1a.Glass = "BK7"
L1a.Diameter = 30.0

# _________________________________________#

L1b = Kos.surf()
L1b.Rc = -4.408716526030626E+001
L1b.Thickness = 3.0
L1b.Glass = "F2"
L1b.Diameter = 30

# _________________________________________#

L1c = Kos.surf()
L1c.Rc = -2.246906271406796E+002
L1c.Thickness = 9.737871661422000E+001
L1c.Glass = "AIR"
L1c.Diameter = 30

# _________________________________________#

P_Ima = Kos.surf()
P_Ima.Name = "Plano imagen"
P_Ima.Rc = 0.0
P_Ima.Thickness = 0.0
P_Ima.Glass = "AIR"
P_Ima.Diameter = 300.0

# _________________________________________#

A = [P_Obj, Dif_Obj_c1, Dif_Obj_c2, L1a, L1b, L1c, P_Ima]
configuracion_1 = Kos.Setup()

# _________________________________________#

Doblete = Kos.system(A, configuracion_1)
Rayos = Kos.raykeeper(Doblete)

# _________________________________________#

tam = 5
rad = 10.0
tsis = len(A) - 1
for i in range(-tam, tam + 1):
    for j in range(-tam, tam + 1):
        x_0 = (i / tam) * rad
        y_0 = (j / tam) * rad
        r = np.sqrt((x_0 * x_0) + (y_0 * y_0))
        if r < rad:
            tet = 0.0
            pSource_0 = [x_0, y_0, 0.0]
            dCos = [0.0, np.sin(np.deg2rad(tet)), np.cos(np.deg2rad(tet))]
            W = 0.4
            Doblete.Trace(pSource_0, dCos, W)
            Rayos.push()
            W = 0.5
            Doblete.Trace(pSource_0, dCos, W)
            Rayos.push()
            W = 0.6
            Doblete.Trace(pSource_0, dCos, W)
            Rayos.push()

# _________________________________________#

Kos.display3d(Doblete, Rayos, 0)
