7.19 Example — Diffraction Grating in Reflection

PDF section 7.19. Source script: KrakenOS/Examples/Examp_Diffraction_Grating_Reflection.py.

The reflective counterpart of 7.18 Example — Diffraction Grating in Transmission: the same grating attributes are applied on a "MIRROR" surface so the diffracted orders are reflected back rather than transmitted.

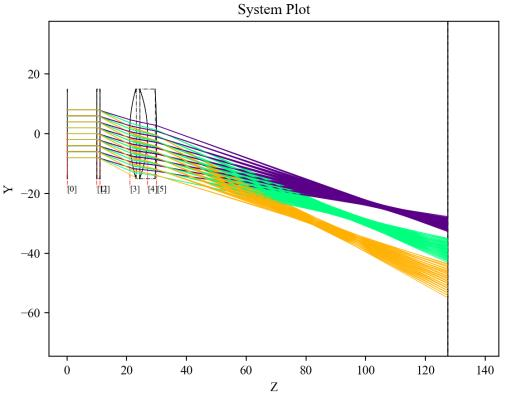

Figure 26a. Reflection grating — multi-wavelength fan.

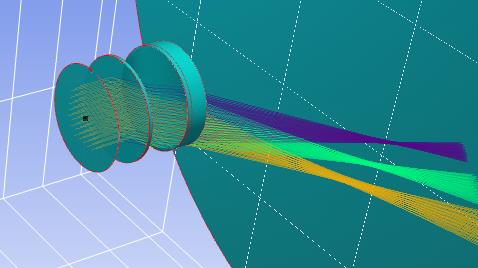

Figure 26b. Alternate view.

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""Examp Diffraction Grating Reflection"""

import numpy as np
from importlib import metadata
""" Looking for if KrakenOS is installed, if not, it assumes that
an folder downloaded from github is run"""

required = {'KrakenOS'}
installed = {dist.metadata["Name"] for dist in metadata.distributions() if dist.metadata.get("Name")}
missing = {pkg for pkg in required if pkg not in installed}

if missing:
    print("Not installed")
    import sys
    sys.path.append("../..")


import KrakenOS as Kos
# _________________________________________#

P_Obj = Kos.surf()
P_Obj.Rc = 0.0
P_Obj.Thickness = 10
P_Obj.Glass = "AIR"
P_Obj.Diameter = 30.0

# _________________________________________#

L1a = Kos.surf()
L1a.Rc = 5.513435044607768E+001
L1a.Thickness = 6.0
L1a.Glass = "BK7"
L1a.Diameter = 30.0

# _________________________________________#

L1b = Kos.surf()
L1b.Rc = -4.408716526030626E+001
L1b.Thickness = 3.0
L1b.Glass = "F2"
L1b.Diameter = 30

# _________________________________________#

L1c = Kos.surf()
L1c.Rc = -2.246906271406796E+002
L1c.Thickness = 9.737871661422000E+001 - 50.0
L1c.Glass = "AIR"
L1c.Diameter = 30

# _________________________________________#

Dif_Obj = Kos.surf()
Dif_Obj.Rc = 0.0
Dif_Obj.Thickness = -50
Dif_Obj.Glass = "MIRROR"
Dif_Obj.Diameter = 30.0
Dif_Obj.Grating_D = 1.0
Dif_Obj.Diff_Ord = 1
Dif_Obj.Grating_Angle = 45.0
# Dif_Obj.Surface_type = 1

# _________________________________________#

P_Ima = Kos.surf()
P_Ima.Rc = 0.0
P_Ima.Name = "Plano imagen"
P_Ima.Thickness = 0.0
P_Ima.Glass = "AIR"
P_Ima.Diameter = 300.0
P_Ima.Drawing = 0

# _________________________________________#

A = [P_Obj, L1a, L1b, L1c, Dif_Obj, P_Ima]
configuracion_1 = Kos.Setup()

# _________________________________________#

Doblete = Kos.system(A, configuracion_1)
Rayos = Kos.raykeeper(Doblete)

# _________________________________________#

tam = 5
rad = 10.0
tsis = len(A) - 1
for i in range(-tam, tam + 1):
    for j in range(-tam, tam + 1):

        x_0 = (i / tam) * rad
        y_0 = (j / tam) * rad
        r = np.sqrt((x_0 * x_0) + (y_0 * y_0))
        if r < rad:
            tet = 0.0
            pSource_0 = [x_0, y_0, 0.0]
            dCos = [0.0, np.sin(np.deg2rad(tet)), np.cos(np.deg2rad(tet))]
            W = 0.4
            Doblete.Trace(pSource_0, dCos, W)
            Rayos.push()
            W = 0.5
            Doblete.Trace(pSource_0, dCos, W)
            Rayos.push()
            W = 0.6
            Doblete.Trace(pSource_0, dCos, W)
            Rayos.push()

# ______________________________________#

Kos.display3d(Doblete, Rayos, 1)
