7.9 Example — Doublet Lens Tilt NonSec

PDF section 7.9. Source script: KrakenOS/Examples/Examp_Doublet_Lens_Tilt_non_sec.py.

Combines surface tilt with the non-sequential tracer. The first occurrence of the doublet is tilted and shifted in Z; the same surfaces are then repeated. Rays that miss the first instance are picked up by the second, demonstrating how NsTrace finds whichever element the ray actually hits.

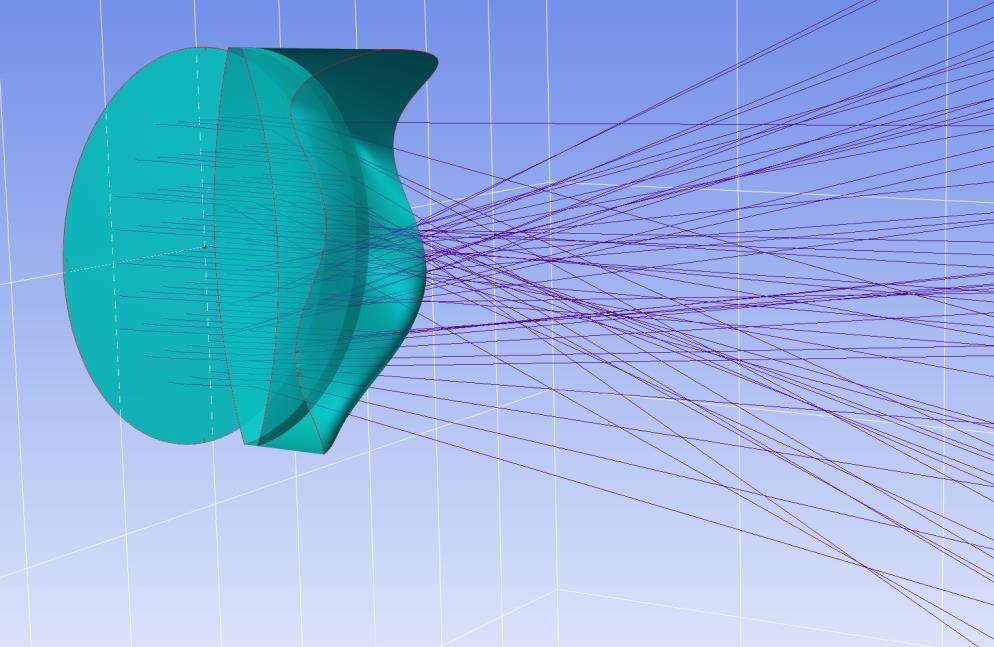

Figure 16. Non-sequential trace through a tilted, repeated doublet — rays that miss the first element are picked up by the second.

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""Examp Doublet Lens Tilt nonSec"""

import numpy as np
from importlib import metadata
""" Looking for if KrakenOS is installed, if not, it assumes that
an folder downloaded from github is run"""

required = {'KrakenOS'}
installed = {dist.metadata["Name"] for dist in metadata.distributions() if dist.metadata.get("Name")}
missing = {pkg for pkg in required if pkg not in installed}

if missing:
    print("Not installed")
    import sys
    sys.path.append("../..")


import KrakenOS as Kos

# _________________________________________#

P_Obj = Kos.surf()
P_Obj.Rc = 0.0
P_Obj.Thickness = 10
P_Obj.Glass = "AIR"
P_Obj.Diameter = 30.0

# _________________________________________#

L1a = Kos.surf()
L1a.Rc = 9.284706570002484E+001
L1a.Thickness = 6.0
L1a.Glass = "BK7"
L1a.Diameter = 30.0
L1a.AxisMove = 1
L1a.TiltX = 13.0
L1a.DespZ = 5.0


# _________________________________________#

L1b = Kos.surf()
L1b.Rc = (-3.071608670000159E+001)
L1b.Thickness = 3.0
L1b.Glass = "F2"
L1b.Diameter = 30



# _________________________________________#

L1c = Kos.surf()
L1c.Rc = (-7.819730726078505E+001)
L1c.Thickness = 9.737604742910693E+001
L1c.Glass = "AIR"
L1c.Diameter = 30



# _________________________________________#

P_Ima = Kos.surf()
P_Ima.Rc = 0.0
P_Ima.Thickness = 0.0
P_Ima.Glass = "AIR"
P_Ima.Diameter = 1000.0
P_Ima.Name = "Plano imagen"

# _________________________________________#

A = [P_Obj, L1a, L1b, L1c, P_Obj, L1a, L1b, L1c, P_Ima]
configuracion_1 = Kos.Setup()

# _________________________________________#

Doblete = Kos.system(A, configuracion_1, build = 0)
Rayos = Kos.raykeeper(Doblete)
Doblete.energy_probability=1

# _________________________________________#

tam = 30
rad = 18.0
tsis = len(A) - 1
for j in range(-tam, tam + 1):
    i = 0
    x_0 = (i / tam) * rad
    y_0 = (j / tam) * rad
    r = np.sqrt((x_0 * x_0) + (y_0 * y_0))
    if r < rad:
        tet = 0.0
        pSource_0 = [x_0, y_0, 0.0]
        dCos = [0.0, np.sin(np.deg2rad(tet)), np.cos(np.deg2rad(tet))]
        W = 0.4
        Doblete.NsTrace(pSource_0, dCos, W)
        Rayos.push()
        W = 0.5
        Doblete.NsTrace(pSource_0, dCos, W)
        Rayos.push()
        W = 0.6
        Doblete.NsTrace(pSource_0, dCos, W)
        Rayos.push()

# _________________________________________#

Kos.display3d(Doblete, Rayos, 2)
