7.15 Example — Axicon and Cylinder

PDF section 7.15. Source script: KrakenOS/Examples/Examp_Axicon_And_Cylinder.py.

Combines Axicon with Cylinder_Rxy_Ratio = 0 and K = -1 on the same surface to demonstrate composing several surface modifiers.

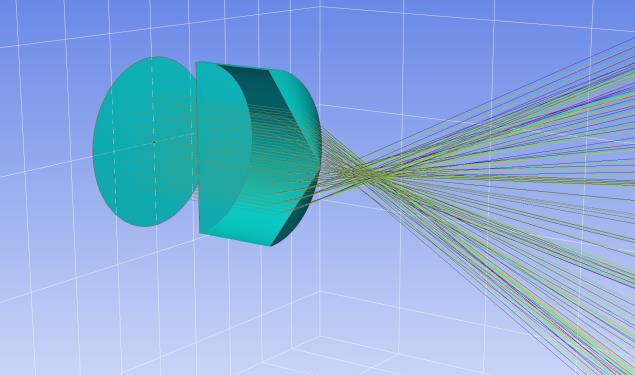

Figure 22a. Axicon combined with a cylindrical profile, 3D view.

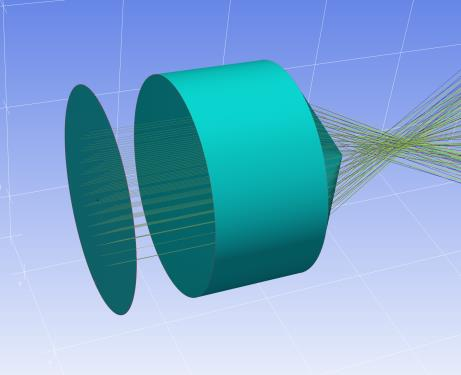

Figure 22b. Alternate view of the same element.

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""Examp Axicon and Cylinder"""

import numpy as np
from importlib import metadata
""" Looking for if KrakenOS is installed, if not, it assumes that
an folder downloaded from github is run"""

required = {'KrakenOS'}
installed = {dist.metadata["Name"] for dist in metadata.distributions() if dist.metadata.get("Name")}
missing = {pkg for pkg in required if pkg not in installed}

if missing:
    print("Not installed")
    import sys
    sys.path.append("../..")


import KrakenOS as Kos

# ______________________________________#

configuracion_1 = Kos.Setup()

# ______________________________________#

P_Obj = Kos.surf()
P_Obj.Rc = 0.0
P_Obj.Thickness = 10
P_Obj.Glass = "AIR"
P_Obj.Diameter = 30.0

# ______________________________________#

L1a = Kos.surf()
L1a.Rc = 0
L1a.Thickness = 26.0
L1a.Glass = "BK7"
L1a.Diameter = 30.0

# ______________________________________#

L1c = Kos.surf()
L1c.Rc = 0.
L1c.k = -1
L1c.Thickness = 9.737604742910693E+001
L1c.Axicon = (-35.0)
L1c.ShiftY = 0
L1c.Cylinder_Rxy_Ratio = 0
L1c.Glass = "AIR"
L1c.Diameter = 30

# ______________________________________#

P_Ima = Kos.surf()
P_Ima.Rc = 0.0
P_Ima.Thickness = 0.0
P_Ima.Glass = "AIR"
P_Ima.Diameter = 100.0
P_Ima.Name = "Plano imagen"

# ______________________________________#

A = [P_Obj, L1a, L1c, P_Ima]

# ______________________________________#

Doblete = Kos.system(A, configuracion_1)
Rayos = Kos.raykeeper(Doblete)

# ______________________________________#

tam = 5
rad = 10.0
tsis = len(A) - 1
for i in range(-tam, tam + 1):
    for j in range(-tam, tam + 1):
        x_0 = (i / tam) * rad
        y_0 = (j / tam) * rad
        r = np.sqrt((x_0 * x_0) + (y_0 * y_0))
        if r < rad:
            tet = 0.0
            pSource_0 = [x_0, y_0, 0.0]
            dCos = [0.0, np.sin(np.deg2rad(tet)), np.cos(np.deg2rad(tet))]
            W = 0.4
            Doblete.Trace(pSource_0, dCos, W)
            Rayos.push()
            W = 0.5
            Doblete.Trace(pSource_0, dCos, W)
            Rayos.push()
            W = 0.6
            Doblete.Trace(pSource_0, dCos, W)
            Rayos.push()

# ______________________________________#

Kos.display3d(Doblete, Rayos, 0)
