7.16 Example — Flat Mirror 45 Deg

PDF section 7.16. Source script: KrakenOS/Examples/Examp_Flat_Mirror_45Deg.py.

Folds the optical axis with a flat mirror at 45°. The mirror uses AxisMove = 2 so the axis itself rotates twice — the convention for specular reflection that keeps the downstream surfaces correctly oriented along the new axis direction.

Figure 23a. 2D view — the optical axis is folded by the flat mirror.

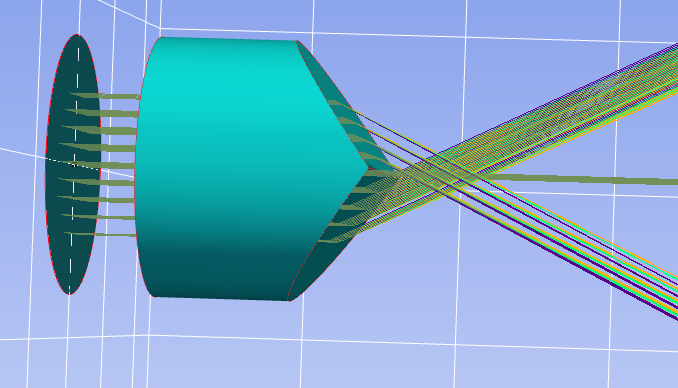

Figure 23b. 3D view of the folded system.

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""Examp Flat Mirror 45 Deg"""

import time
import matplotlib.pyplot as plt
import numpy as np

import sys
from importlib import metadata
""" Looking for if KrakenOS is installed, if not, it assumes that
an folder downloaded from github is run"""

required = {'KrakenOS'}
installed = {dist.metadata["Name"] for dist in metadata.distributions() if dist.metadata.get("Name")}
missing = {pkg for pkg in required if pkg not in installed}

if missing:
    print("Not installed")
    import sys
    sys.path.append("../..")


import KrakenOS as Kos
# ______________________________________#

start_time = time.time()

# ______________________________________#

P_Obj = Kos.surf()
P_Obj.Rc = 0.0
P_Obj.Thickness = 10
P_Obj.Glass = "AIR"
P_Obj.Diameter = 30.0

# ______________________________________#

L1a = Kos.surf()
L1a.Rc = 9.284706570002484E+001
L1a.Thickness = 6.0
L1a.Glass = "BK7"
L1a.Diameter = 30.0
L1a.Axicon = 0

# ______________________________________#

L1b = Kos.surf()
L1b.Rc = -3.071608670000159E+001
L1b.Thickness = 3.0
L1b.Glass = "F2"
L1b.Diameter = 30

# ______________________________________#

POS_ESP = -40
L1c = Kos.surf()
L1c.Rc = -7.819730726078505E+001
L1c.Thickness = 9.737604742910693E+001 + POS_ESP
L1c.Glass = "AIR"
L1c.Diameter = 30

# ______________________________________#

Esp90 = Kos.surf()
Esp90.Thickness = POS_ESP
Esp90.Glass = "MIRROR"
Esp90.Diameter = 30.0
Esp90.Name = "Espejo a 90 grados"
Esp90.TiltX = 45.
Esp90.AxisMove = 2.



# ______________________________________#

P_Ima = Kos.surf()
P_Ima.Rc = 0.0
P_Ima.Thickness = 0.0
P_Ima.Glass = "AIR"
P_Ima.Diameter = 3.0
P_Ima.Name = "Plano imagen"

# ______________________________________#

A = [P_Obj, L1a, L1b, L1c, Esp90, P_Ima]

config_1 = Kos.Setup()

# ______________________________________#

Doblete = Kos.system(A, config_1)


Rayos1 = Kos.raykeeper(Doblete)
Rayos2 = Kos.raykeeper(Doblete)
Rayos3 = Kos.raykeeper(Doblete)
RayosT = Kos.raykeeper(Doblete)

# ______________________________________#

tam = 10
rad = 10.0
tsis = len(A) - 1
for j in range(-tam, tam + 1):
    for i in range(-tam, tam + 1):
        x_0 = (i / tam) * rad
        y_0 = (j / tam) * rad
        r = np.sqrt((x_0 * x_0) + (y_0 * y_0))
        if r < rad:
            tet = 0.0
            pSource_0 = [x_0, y_0, 0.0]
            dCos = [0.0, np.sin(np.deg2rad(tet)), np.cos(np.deg2rad(tet))]
            W = 0.4
            Doblete.Trace(pSource_0, dCos, W)
            Rayos1.push()
            RayosT.push()
            W = 0.5
            Doblete.Trace(pSource_0, dCos, W)
            Rayos2.push()
            RayosT.push()
            W = 0.6
            Doblete.Trace(pSource_0, dCos, W)
            Rayos3.push()
            RayosT.push()

# ______________________________________#

# Kos.display3d(Doblete, RayosT, 2)

system = Doblete
Kos.display2d(system, RayosT, 0)


# # ______________________________________#

X, Y, Z, L, M, N = Rayos1.pick(-1)
plt.plot(X, Z, 'x')
X, Y, Z, L, M, N = Rayos2.pick(-1)
plt.plot(X, Z, 'x')
X, Y, Z, L, M, N = Rayos3.pick(-1)
plt.plot(X, Z, 'x')
plt.xlabel('X')
plt.ylabel('Y')
plt.title('Spot Diagram')
plt.axis('square')
plt.show()
